Creating a solar powered weather station

Table of contents

1. Intro
2. What is this?
3. Printed Circuit Board
4. Parts Required
5. Assembly
6. Software
7. Printing Parts

Intro

I won an auction titled "Box of bits inc Arduinos, Pi's, Odroid, various sensors etc" on ebay there were 3 Wifi Weather Station PCBs and a few other required components included in the lot, let's order the rest of the parts and assemble them.

What is this?

This is a PCB to create a Weather Station powered by an 18650 battery, the project has had a few updates at the time of writing, the project is up to V4.0, however most of the parts required were included in the original listing so why not try assemble them and see how it goes.

Printed Circuit Board

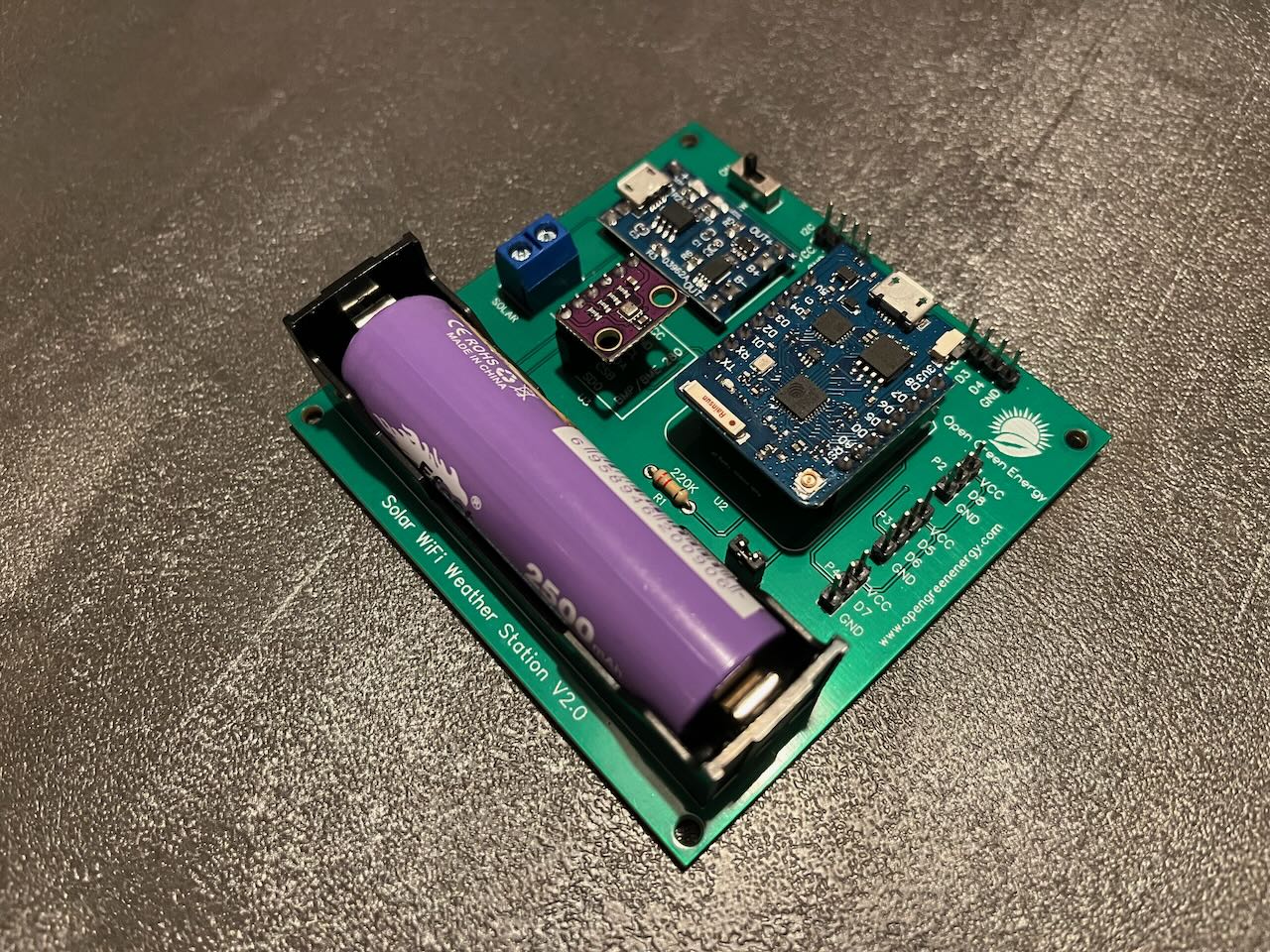

The PCB was designed by Open Green Energy and was designed around the Wemos D1 Mini Pro micro controller, and it includes a connector to attach a solar panel, a TP4056 to charge an 18650 Lithium battery, and a BMP280 Temperature, Humidity and Barometric Pressure sensor. It also has a few extra headers for attaching additional sensors such as a DS18B20 Temperature sensor or adding an I2C display.

Parts Required

Quantities are for 1 PCB.

Assembly

Software

To make the board work in ESPHome we need to select d1_mini_pro as the board type:

esphome:
  name: weather-station
  friendly_name: Weather Station
  comment: Solar Powered WiFi Weather Station V2.0
  project:
    name: 'Open-Green-Energy.Solar-Wifi-Weather-Station'
    version: '2.0'

esp8266:
  board: d1_mini_pro

For the BME280 sensor we need to add:

i2c:
  scl: D1
  sda: D2

sensor:
  - platform: bme280
    temperature:
      name: Temperature
      id: bme280_temperature
      oversampling: 16x
    pressure:
      name: Pressure
      id: bme280_pressure
    humidity:
      name: Relative Humidity
      id: bme280_humidity
    address: 0x76
    update_interval: 10s

  - platform: absolute_humidity
    name: Absolute Humidity
    temperature: bme280_temperature
    humidity: bme280_humidity

  - platform: template
    name: Equivalent sea level pressure
    lambda: |-
      const float STANDARD_ALTITUDE = 10.0; // in meters, see note
      return id(bme280_pressure).state / powf(1 - ((0.0065 * STANDARD_ALTITUDE) /
        (id(bme280_temperature).state + (0.0065 * STANDARD_ALTITUDE) + 273.15)), 5.257); // in hPa
    update_interval: 10s
    unit_of_measurement: 'hPa'

  - platform: template
    name: Dew Point
    lambda: |-
      return (243.5*(log(id(bme280_humidity).state/100)+((17.67*id(bme280_temperature).state)/
      (243.5+id(bme280_temperature).state)))/(17.67-log(id(bme280_humidity).state/100)-
      ((17.67*id(bme280_temperature).state)/(243.5+id(bme280_temperature).state))));
    update_interval: 10s
    unit_of_measurement: °C
    icon: 'mdi:thermometer-alert'

For a DS18B20 sensor we need to add:

one_wire:
  - platform: gpio
    pin: D7

sensor:
  - platform: dallas_temp
    address: 0x593ce1045707bc28
    name: External Temperature

And to calculate the battery voltage:

sensor:
  - platform: adc
    name: Battery Voltage
    id: battery_voltage
    device_class: voltage
    pin: A0
    filters:
      - multiply: 5.2

  - platform: template
    name: Battery Level
    device_class: battery
    unit_of_measurement: '%'
    lambda: !lambda |-
      if (id(battery_voltage).state <= 3) return 0;
      else return ((id(battery_voltage).state - 3) / 1.2 * 100.00);
    update_interval: 10s
