Sourcing parts for a Land Rover inspired remote control car, the 3D Sets Landy!

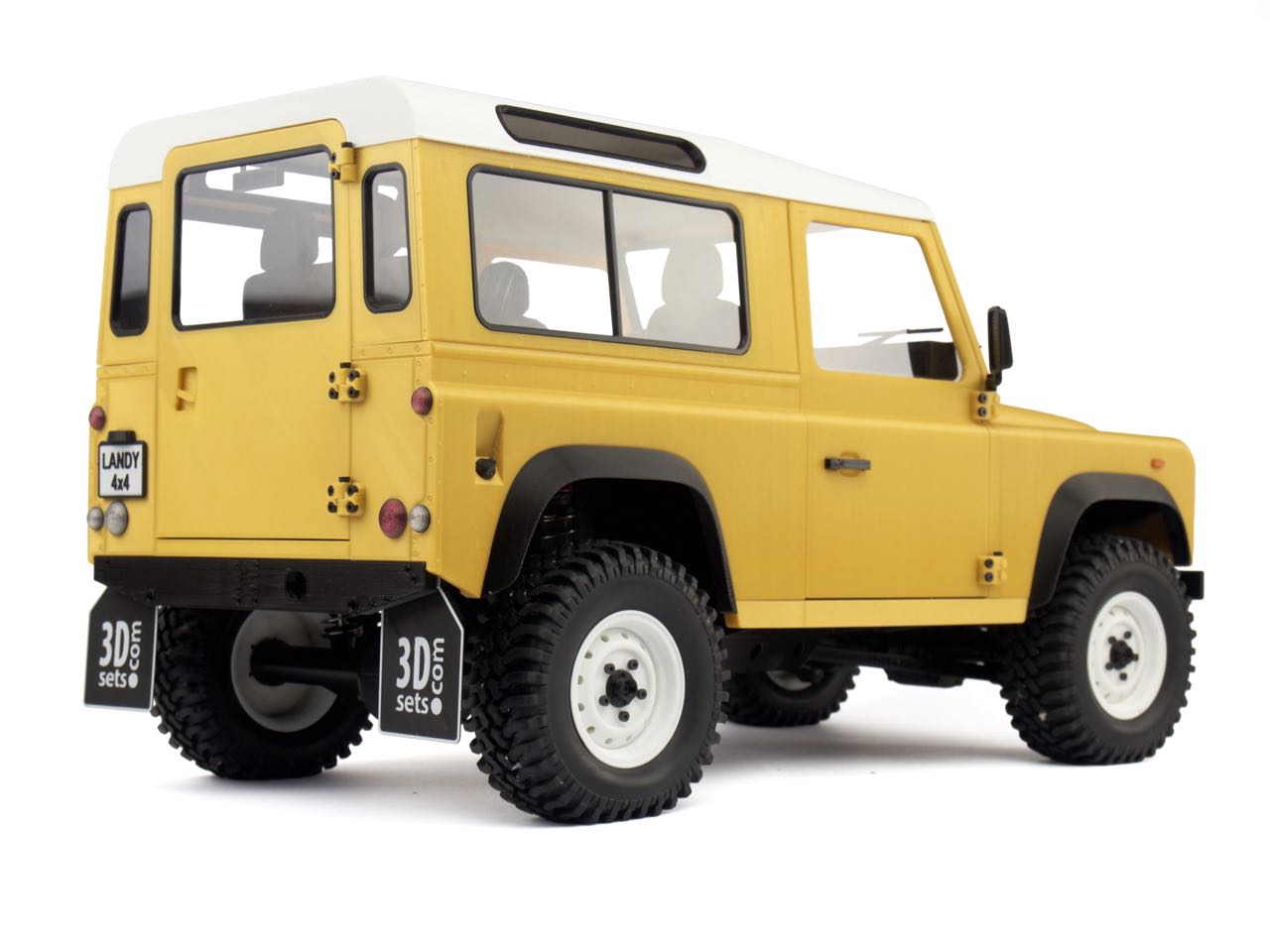

3D Sets Landy Pickup

Image © 2022 3D Sets

Electronics

ItemQuantityReceivedNotes
2S LiPo Battery11
3530 Brushless Motor1Only for BeltDrive 4x4 gearbox
540 DC motor (27 T)11Only for Geared gearbox
Steering servo11
Speed Controller (ESC)11

Motion

ItemQuantityReceivedNotes
Ball Bearing 10x15x4 mm - 6700RS38100
HTD 144-3M-06 Timing belts4Only for BeltDrive 4x4 gearbox
Rubber tires - OD: 90-100mm, ID: 46-48mm551 extra for spare tyre
Shock/Coil springs - 75-90mm44

Misc

ItemQuantityReceivedNotes
Clear Binding Covers11
Grease11
Thread Locker11

Fasteners

ItemQuantityReceivedNotes
M2x6 SHCS113200
M2x8 SHCS250
M2x10 SHCS45100
M2x12 SHCS650
M2x14 SHCS250
M2x16 SHCS350
M3x6 BHCS339
M3x8 BHCS1991
M3x10 BHCS58100
M3x12 BHCS30147
M3x16 BHCS43135
M3x6 SHCS222
M3x8 SHCS20104
M3x20 SHCS1120
M3x25 SHCS1018
M3x6 Set Screw252
M3 nuts4242
M3 locknuts2222

Offroad Accessory Kit Fasteners

ItemQuantityReceivedNotes
M2x6 SHCS40200
M2x8 SHCS150
M2x10 SHCS8100
M3x10 BHCS4100

Landy 4x4 Pickup

Chassis 1

ItemQuantityMaterialPrintedNotes
Rear frame - Left1eSun ABS+ (Black)❌
Rear frame - Right1eSun ABS+ (Black)❌
Rear wheelhouse - Left1eSun ABS+ (Black)❌
Rear wheelhouse - Right1eSun ABS+ (Black)❌
Trunk Floor1eSun ABS+ (Black)❌

Chassis 2

ItemQuantityMaterialPrintedNotes
Floor - Left1eSun ABS+ (Black)❌
Floor - Right1eSun ABS+ (Black)❌
Track Bar mount1eSun ABS+ (Black)❌

Chassis 3

ItemQuantityMaterialPrintedNotes
Front frame - Left1eSun ABS+ (Black)❌
Front frame - Right1eSun ABS+ (Black)❌
Front wheelhouse - Left1eSun ABS+ (Black)❌
Front wheelhouse - Right1eSun ABS+ (Black)❌
Servo mount1eSun ABS+ (Black)❌
Track Bar mount1eSun ABS+ (Black)❌

Body

ItemQuantityMaterialPrintedNotes
Cooler1eSun ABS+ (Black)❌
Engine Bulkhead - left1eSun ABS+ (Pine Green)❌
Engine Bulkhead - right1eSun ABS+ (Pine Green)❌
Fender Grill - left1eSun ABS+ (Black)❌
Fender Grill - right1eSun ABS+ (Black)❌
Front Body1eSun ABS+ (Pine Green)❌
Front Fender - left1eSun ABS+ (Pine Green)❌
Front Fender - right1eSun ABS+ (Pine Green)❌
Gas Tank Cap1eSun ABS+ (Silver)❌
Hinge A - door left1eSun ABS+ (Pine Green)❌
Hinge A - door right1eSun ABS+ (Pine Green)❌
Rear Fender - left1eSun ABS+ (Pine Green)❌
Rear Fender - right1eSun ABS+ (Pine Green)❌
Splash Guard - left1Ziro TPU (Black)❌
Splash Guard - right1Ziro TPU (Black)❌
Tail Light Cover - left1eSun ABS+ (Black)❌
Tail Light Cover - right1eSun ABS+ (Black)❌
Tail Light Large2BasicFil PETG (Clear)❌
Tail Light Small - winker2BasicFil PETG (Clear)❌
Tail Light Small - brake2BasicFil PETG (Clear)❌

Gearbox

I am not sure which gearbox I am going to use. I may start with the geared gearbox first as I can reuse the electronics from my OpenRC F1 car and then order the parts and build the belted gearbox at a later stage.

Arms

ItemQuantityMaterialPrintedNotes
Ball joint12eSun ABS+ (Black)❌
Centre of the Chassis1eSun ABS+ (Black)❌
Control Arm - lower4eSun ABS+ (Black)❌
Control Arm - upper2eSun ABS+ (Black)❌

Electronics

ItemQuantityMaterialPrintedNotes
Door sill - left1eSun ABS+ (Pine Green)❌
Door sill - right1eSun ABS+ (Pine Green)❌
Electronics box4eSun ABS+ (Black)❌

Seats

ItemQuantityMaterialPrintedNotes
Armrest1eSun ABS+ (Black)❌
Armrest cover1eSun ABS+ (Brown)❌
Electronics box - cover1eSun ABS+ (Black)❌
Floor mat - left1eSun ABS+ (Black)❌
Floor mat - right1eSun ABS+ (Black)❌
Front seat - bottom2eSun ABS+ (Brown)❌
Front seat - top2eSun ABS+ (Brown)❌

Windshield

ItemQuantityMaterialPrintedNotes
Hinge - windscreen2eSun ABS+ (Pine Green)❌
Hinge A - door left1eSun ABS+ (Pine Green)❌
Hinge A - door right1eSun ABS+ (Pine Green)❌
Windscreen1eSun ABS+ (Pine Green)❌
Windscreen - mount Wiper1eSun ABS+ (Black)❌
Windscreen Bulkhead1eSun ABS+ (Pine Green)❌
Windscreen Inner Frame1eSun ABS+ (Black)❌
Windscreen Outer Frame1eSun ABS+ (Black)❌
Windscreen wiper2eSun ABS+ (Black)❌

Dashboard

ItemQuantityMaterialPrintedNotes
Dashboard - bottom1eSun ABS+ (Black)❌
Dashboard - top1eSun ABS+ (Brown)❌
Steering wheel A1eSun ABS+ (Brown)❌
Steering wheel B1eSun ABS+ (Brown)❌
Stickshift base1eSun ABS+ (Brown)❌
Stickshift head A1eSun ABS+ (Silver)❌
Stickshift head B1eSun ABS+ (Silver)❌

Roof

ItemQuantityMaterialPrintedNotes
Pickup Bulkhead1eSun ABS+ (Pine Green)❌
Pickup Roof1eSun ABS+ (Cold White)❌
Rear Window1eSun ABS+ (Pine Green)❌
Rear Window Inner Frame1eSun ABS+ (Black)❌

Grill

ItemQuantityMaterialPrintedNotes
Front light2BasicFil PETG (Clear)❌
Grill1eSun ABS+ (Black)❌Print the Grill with headlamp guards version instead
Hinge A2eSun ABS+ (Pine Green)❌
Winker - front4BasicFil PETG (Clear)❌

Fender & Hood

ItemQuantityMaterialPrintedNotes
Front Fender Flare - left1eSun ABS+ (Black)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Front Fender Flare - right1eSun ABS+ (Black)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Hinge B2eSun ABS+ (Pine Green)❌
Hood1eSun ABS+ (Pine Green)❌
Rear Fender Flare - left1eSun ABS+ (Black)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Rear Fender Flare - right1eSun ABS+ (Black)❌Not Required as this will be replaced by the Offroad Accessory Kit version

Bumpers & Rear Door

ItemQuantityMaterialPrintedNotes
Front Bumper1eSun ABS+ (Black)❌
Front frame end1eSun ABS+ (Black)❌
Hinge A - pickup2eSun ABS+ (Black)❌
Hinge B - pickup2eSun ABS+ (Pine Green)❌
Rear Door1eSun ABS+ (Pine Green)❌
Rear Door Sill1eSun ABS+ (Pine Green)❌
Rear Bumper1eSun ABS+ (Black)❌Not Required as this will be replaced by the Car Hauler version
Rear frame end1eSun ABS+ (Black)❌Not Required as this will be replaced by the Car Hauler version
Servo Guard1eSun ABS+ (Black)❌

Doors

ItemQuantityMaterialPrintedNotes
Door - left1eSun ABS+ (Pine Green)❌
Door - right1eSun ABS+ (Pine Green)❌
Door Handle2eSun ABS+ (Black)❌
Door Interior - left1eSun ABS+ (Brown)❌
Door Interior - right1eSun ABS+ (Brown)❌
Hinge B - door left2eSun ABS+ (Pine Green)❌
Hinge B - door right2eSun ABS+ (Pine Green)❌
Tail Gate Lock2eSun ABS+ (Black)❌
Wing Mirrors - left1eSun ABS+ (Black)❌
Wing Mirrors - right1eSun ABS+ (Black)❌

Axles

I am not sure which axels I am going to use. It will depend on the type of gearbox I am using and the terrain I will be using the car on.

ItemQuantityMaterialPrintedNotes
Pickup Floor1eSun ABS+ (Black)❌

Wheels

There is a choice of 2 different wheel styles.

ItemQuantityMaterialPrintedNotes
Licence Plate1eSun ABS+ (Black)❌
Wheel C - Inner4eSun ABS+ (Cold White)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Wheel C - Outer4eSun ABS+ (Cold White)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Wheel C - wheel Hub4eSun ABS+ (Black)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Wheel D - inner Rim4eSun ABS+ (Silver)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Wheel D - outer Rim4eSun ABS+ (Silver)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Wheel D - wheel Hub4eSun ABS+ (Silver)❌Not Required as this will be replaced by the Offroad Accessory Kit version
Winker - side2BasicFil PETG (Clear)❌

Offroad Accessory Kit

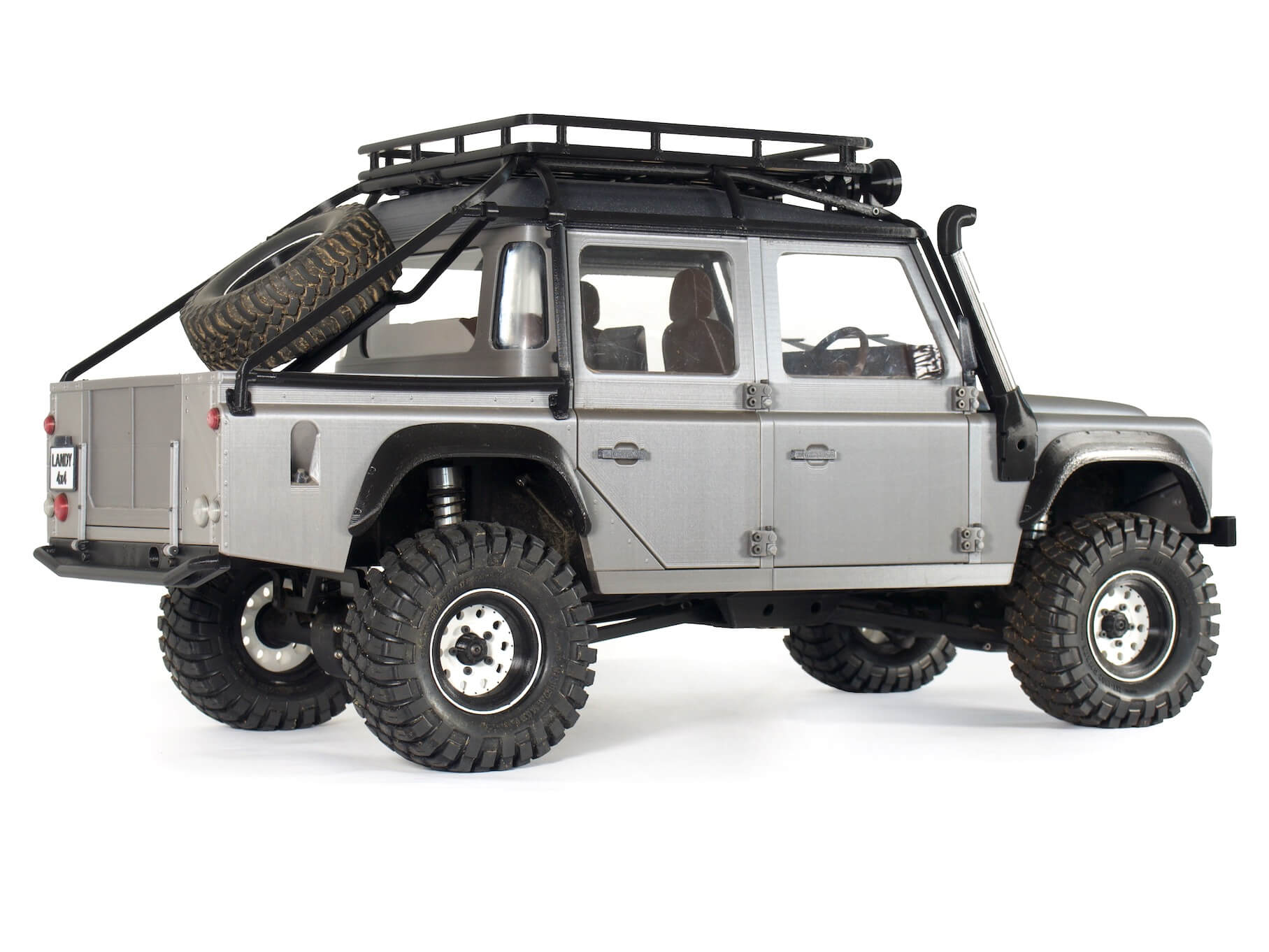

3D Sets Offroad Accessory Kit

Image © 2022 3D Sets

Fender Flare

ItemQuantityMaterialPrintedNotes
Offroad Fender Flare4Ziro TPU (Black)❌

Tube Frame 1

ItemQuantityMaterialPrintedNotes
Tube Frame - mount left1eSun ABS+ (Black)❌
Tube Frame - mount right1eSun ABS+ (Black)❌
Tube Frame - rear1eSun ABS+ (Black)❌

Tube Frame 2

ItemQuantityMaterialPrintedNotes
Tube Frame - brace left1eSun ABS+ (Black)❌
Tube Frame - brace right1eSun ABS+ (Black)❌
Tube Frame - insert left1eSun ABS+ (Black)❌
Tube Frame - insert right1eSun ABS+ (Black)❌

Tube Frame 3

ItemQuantityMaterialPrintedNotes
Tube Frame - front1eSun ABS+ (Black)❌
Tube Frame - mount windscreen left1eSun ABS+ (Black)❌
Tube Frame - mount windscreen right1eSun ABS+ (Black)❌
Tube Frame - top left1eSun ABS+ (Black)❌
Tube Frame - top right1eSun ABS+ (Black)❌

Fender Air Intake

ItemQuantityMaterialPrintedNotes
Air Intake - frame left1eSun ABS+ (Black)❌
Air Intake - frame right1eSun ABS+ (Black)❌
Fender Air Intake - scoop left1eSun ABS+ (Black)❌
Fender Air Intake - scoop right1eSun ABS+ (Black)❌

Snorkel

ItemQuantityMaterialPrintedNotes
Snorkel Air Intake - box1eSun ABS+ (Black)❌
Snorkel Air Intake - outer1eSun ABS+ (Black)❌
Snorkel Air Intake - top1eSun ABS+ (Black)❌

Fog Lights

ItemQuantityMaterialPrintedNotes
Fog Light - body2eSun ABS+ (Black)❌
Fog Light - bumper mount1eSun ABS+ (Black)❌
Fog Light - cover2eSun ABS+ (Black)❌
Fog Light - insert2eSun ABS+ (Silver)❌

Wheel E

ItemQuantityMaterialPrintedNotes
Wheel E - hub4eSun ABS+ (Black)❌
Wheel E - inner Rim4eSun ABS+ (Silver)❌
Wheel E - outer Rim4eSun ABS+ (Silver)❌
